8625HD Power Tong

Starr Oil Tools LLC

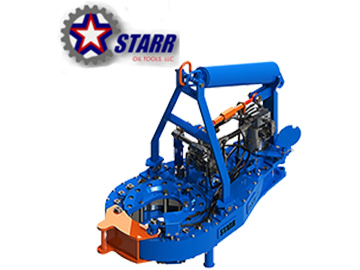

8-5/8" HD • 35K Hydraulic Power Tong

Starr Oil Tools LLC is an American made Power Tong company located in Broussard, Louisiana. The Hydraulic Power Tongs are capable of running CRA Tubulars using gritface dies.

Specifications
TORQUE TABLE
PRESSURE HIGH GEAR LOW GEAR
PSI/ MPa Lb-ft/ Nm Lb-ft/ Nm
1000 /6.89 1970 / 2671 9590 / 13002
1500 / 10.34 3670 / 4976 16420 / 22263
2000 /13.79 5170 / 7010 23250/ 31523
2500 / 17.24 6680 / 9057 30080 / 40783
3000 / 20.68 7420/ 10060 36920 / 50057
MAXIMUM RATED TORQUE: 35000 Lb-ft/47454 Nm
SPEED TABLE
FLOW (US GPM/LPM) LOW GEAR (RPM) HIGH GEAR (RPM)
10/37.85 2.1 11.3
20/75.71 4.3 21.3
40/151.42 8.5 42.5
60/227.12 12.8 63.8

Hydraulic Requirements (Max.): 60 US GPM / PSI (227.12 LPM / 20.68 Mpa)
Length (Doors Closed): 58.5 in / 148.5 cm
Height: 47.8 in / 121.5 cm
Width: 29.7 in / 75.6 cm
Space Required on Pipe: 8 in / 20.3 cm
Maximum Elevator Diameter: N/A
Torque Arm Length: 36 in / 91.4 cm (Center of pipe to Center of anchor)
Approximate Weight: 1350 Lb/ 612 kg

JAWS AVAILABLE: 31/2” –8 5/8”
(Other sizes available upon request)
