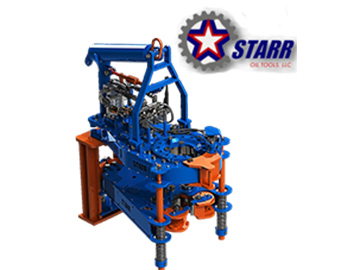

5500HD Power Tong

Starr Oil Tools LLC

5-1/2" HD • 25K Hydraulic Power Tong

Starr Oil Tools LLC is an American made Power Tong company located in Broussard, Louisiana. The Hydraulic Power Tongs are capable of running CRA Tubulars using gritface dies.

Specifications
TORQUE TABLE
PRESSURE HIGH GEAR LOW GEAR
PSI/ MPa Lb-ft/ Nm Lb-ft/ Nm
1500/10.34 3600/4881 17900/24269
100/6.89 1560/2115 7800/10575
1500/10.34 2480/3362 12390/16799
2000/13.79 3400/4610 16980/23022
2500/17.24 4310/5844 21570/29245
3000/20.68 5230/7091 26160/35468
MAXIMUM RATED TORQUE: 35000 Lb-ft/47454 Nm
SPEED TABLE
FLOW (US GPM/LPM) LOW GEAR (RPM) HIGH GEAR (RPM)
10/37.85 2.9 14.2
20/75.71 5.7 28.5
40/151.42 11.4 57
60/227.12 17.1 85.5

Hydraulic Requirements (Max.):60 US GPM / PSI (227.12 LPM / 20.68 Mpa)
Length (Doors Closed): (Max.): 54.8 in / 139.1 cm (No Backup) • 57.2 in / 145.3 cm (With Backup)
Height: 38.8 in / 98.6 cm (No Backup); 64.8 in / 164.5 cm (With Backup)
Width: 32.1 in / 81.4 cm (No Backup); 33.7 in / 85.7 cm (With Backup)
Space Required on Pipe: 6.75 in / 17.1 cm
Maximum Elevator Diameter: N/A
Torque Arm Length: 36 in / 91.4 cm (Center of pipe to Center of anchor)
Approximate Weight: 1100 Lb/ 499 kg (No Backup); • 2260 Lb/ 1025 kg (With Backup)

JAWS AVAILABLE: 2 7/8” –5 1/2”
(Other sizes available upon request)
