13625HD Power Tong

Starr Oil Tools LLC

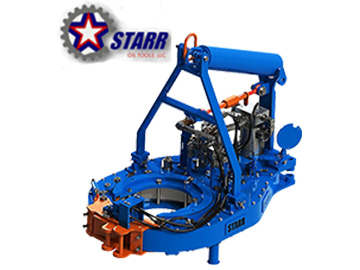

13-5/8" HD • 35K Hydraulic Power Tong

Starr Oil Tools LLC is an American made Power Tong company located in Broussard, Louisiana. The Hydraulic Power Tongs are capable of running CRA Tubulars using gritface dies.

Specifications
TORQUE TABLE
PRESSURE HIGH GEAR LOW GEAR
PSI/ MPa Lb-ft/ Nm Lb-ft/ Nm
1500/10.34 3600/4881 179+00/24269
2000/13.79 5070/6874 25210/34180
2500/17.24 6540/8867 32510/44078
MAXIMUM RATED TORQUE: 35000 Lb-ft/47454 Nm
SPEED TABLE
FLOW (US GPM/LPM) LOW GEAR (RPM) HIGH GEAR (RPM)
10/37.85 1.7 9
20/75.71 3.4 17
40/151.42 63.8 34
60/227.12 10.2 51

Hydraulic Requirements (Max.): 60 US GPM / PSI (227.12 LPM / 20.68 Mpa)
Length (Doors Closed): 58.9 in / 149.7 cm
Height: 46.8 in / 119.0 cm
Width: 34.2 in / 86.9 cm
Space Required on Pipe: 8 in / 20.3 cm
Maximum Elevator Diameter: N/A
Torque Arm Length: 36 in / 91.4 cm (Center of pipe to Center of anchor)
Approximate Weight: 1430 Lb / 649 kg

JAWS AVAILABLE: 7” – 13 5/8”
(Other sizes available upon request)
